Description
The revolutionary winch.
The very first Lithium-Ion battery-powered capstan winch in the world! Instant start with a button. Three speeds. Powerful motor. Interchangeable quick-charge batteries (not included). Indoor and outdoor use.
Design
With its push button starter, the PCW3000-Li is the simplest and fastest winch to start. It is also the first one to offer three operating speeds. In addition, it supports 80/82 V Lithium-Ion batteries, from 2 to 6 Ah, from several major brands (see the list of compatible batteries).
Performance
Depending on the selected speed, the weight of the pulled load and the chosen battery, the user benefits from a battery life ranging from 20 to 40 minutes of continuous use, without loss of power.
If necessary, it only takes a few seconds to change battery on the spot and continue at the same pace. Batteries can be recharged to full capacity at any time during the discharge cycle without damaging the cells and the engine requires no maintenance. Designed to be used year-round, the winch can be operated down to -14 degrees Celsius without affecting its autonomy or performance.
The PCW3000-Li develops a remarkable pulling force of 2,200 lb without mechanical advantage. By using a pulley system, you can go up to five times (5x) this pulling force. In other words, with two double pulleys, you could pull up to 11,000 lb!

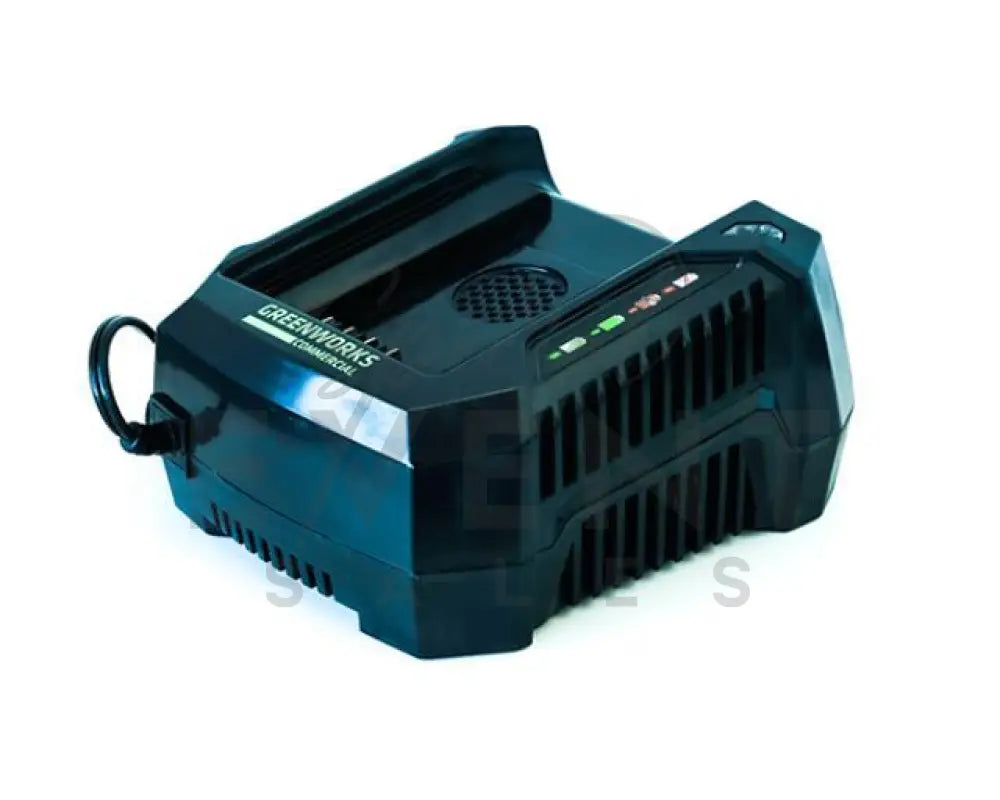

Note: No battery or charger is included with the PCW3000-Li winch. However, you can select the type and number of batteries as well as the charger and the selling price will be adjusted accordingly.
PCW3000-Li
Series Pro
Designed in 2018
Motor/Engine Portable Winch Co.
Brushless electric motor with overload protection - 360° inclinable
1.0 kW - 82 Volts
Powered by Lithium-Ion 80/82V batteries - 2 to 6 Ah (not included)
Drive/Clutch
Direct drive (no clutch)
Rope Retention System No
Drum turns when motor/engine is idling Yes
Pulling Capacity
Standard drum (single line / double line) Ø 3'' (76 mm): 2,200 lb / 4,400 lb
Optional drum (single line / double line) No optional drum
Lifting Capacity
Standard drum (single line / double line) Not designed for lifting - See INDUSTRIAL Series winches
Optional drum (single line / double line) ---
Speed
Standard drum Ø 3'' (76 mm): 27'/min to 38'/min (3 speeds)
Optional drum No optional drum
Weight 20 lb
Dimensions (overall) 12-1/8'' x 12-7/16'' x 12-3/16''
Gearbox
Aluminium alloy. Heat treated 3-stage helical & spur gears. Mounted on ball bearings. Oil bath lubrication.
Gear ratio 200:1
Brake Anti-reversing roller clutch bearing
Rope (not included)
Low stretch double braided polyester
Length Unlimited
Minimum Breaking Strength (MBS)
4,850 lb
Minimum diameter Ø 3/8'' (10 mm)
Maximum diameter Ø 1/2'' (13 mm)
Recommended diameter Ø 3/8'' (10 mm)
Included
Polyester sling - 2-1/2'' x 6-1/2'
Warranty Once purchased, register your winch online and get 1 additional year of warranty for FREE!
Private use 5 years
Commercial use 1 year
Motor/Engine Portable Winch Co. Int'l Warranty
Certification(s) CE, IPX3
The very first Lithium-Ion battery-powered capstan winch in the world! Instant start with a button. Three speeds. Powerful motor. Interchangeable quick-charge batteries (not included). Indoor and outdoor use.
Design
With its push button starter, the PCW3000-Li is the simplest and fastest winch to start. It is also the first one to offer three operating speeds. In addition, it supports 80/82 V Lithium-Ion batteries, from 2 to 6 Ah, from several major brands (see the list of compatible batteries).
Performance
Depending on the selected speed, the weight of the pulled load and the chosen battery, the user benefits from a battery life ranging from 20 to 40 minutes of continuous use, without loss of power.
If necessary, it only takes a few seconds to change battery on the spot and continue at the same pace. Batteries can be recharged to full capacity at any time during the discharge cycle without damaging the cells and the engine requires no maintenance. Designed to be used year-round, the winch can be operated down to -14 degrees Celsius without affecting its autonomy or performance.
The PCW3000-Li develops a remarkable pulling force of 2,200 lb without mechanical advantage. By using a pulley system, you can go up to five times (5x) this pulling force. In other words, with two double pulleys, you could pull up to 11,000 lb!
Note: No battery or charger is included with the PCW3000-Li winch. However, you can select the type and number of batteries as well as the charger and the selling price will be adjusted accordingly.
PCW3000-Li
Series Pro
Designed in 2018
Motor/Engine Portable Winch Co.
Brushless electric motor with overload protection - 360° inclinable
1.0 kW - 82 Volts
Powered by Lithium-Ion 80/82V batteries - 2 to 6 Ah (not included)
Drive/Clutch
Direct drive (no clutch)
Rope Retention System No
Drum turns when motor/engine is idling Yes
Pulling Capacity
Standard drum (single line / double line) Ø 3'' (76 mm): 2,200 lb / 4,400 lb
Optional drum (single line / double line) No optional drum
Lifting Capacity
Standard drum (single line / double line) Not designed for lifting - See INDUSTRIAL Series winches
Optional drum (single line / double line) ---
Speed
Standard drum Ø 3'' (76 mm): 27'/min to 38'/min (3 speeds)
Optional drum No optional drum
Weight 20 lb
Dimensions (overall) 12-1/8'' x 12-7/16'' x 12-3/16''
Gearbox
Aluminium alloy. Heat treated 3-stage helical & spur gears. Mounted on ball bearings. Oil bath lubrication.
Gear ratio 200:1
Brake Anti-reversing roller clutch bearing
Rope (not included)
Low stretch double braided polyester
Length Unlimited
Minimum Breaking Strength (MBS)
4,850 lb
Minimum diameter Ø 3/8'' (10 mm)
Maximum diameter Ø 1/2'' (13 mm)
Recommended diameter Ø 3/8'' (10 mm)
Included
Polyester sling - 2-1/2'' x 6-1/2'
Warranty Once purchased, register your winch online and get 1 additional year of warranty for FREE!
Private use 5 years
Commercial use 1 year
Motor/Engine Portable Winch Co. Int'l Warranty
Certification(s) CE, IPX3
